Tested according to EN 60998 norm.
Screwless terminal for the electrical conductors linking.
The type of conductor could optionally be flexible, semi rigid or rigid.
Choose the economy packaging from the menu to have the best price!

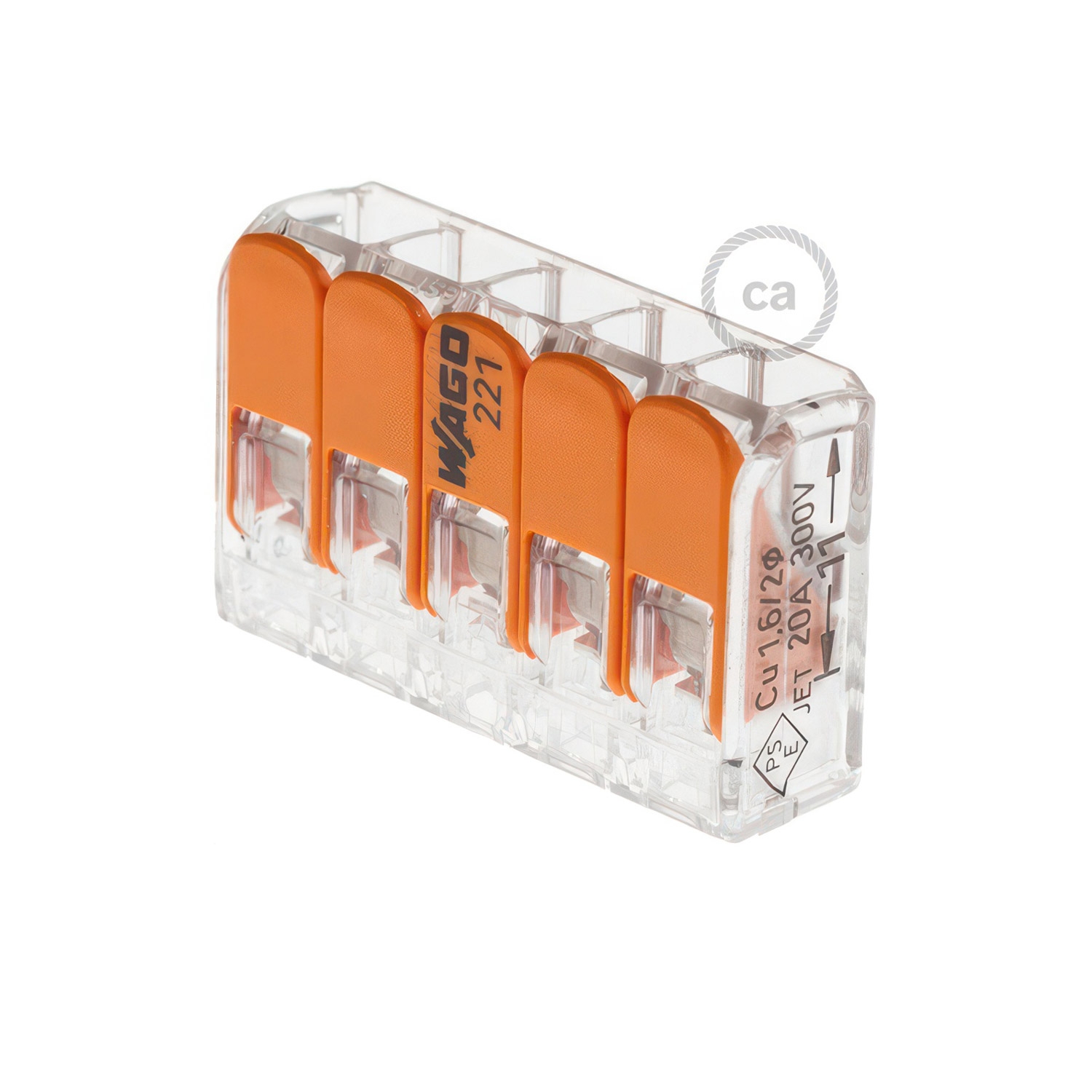

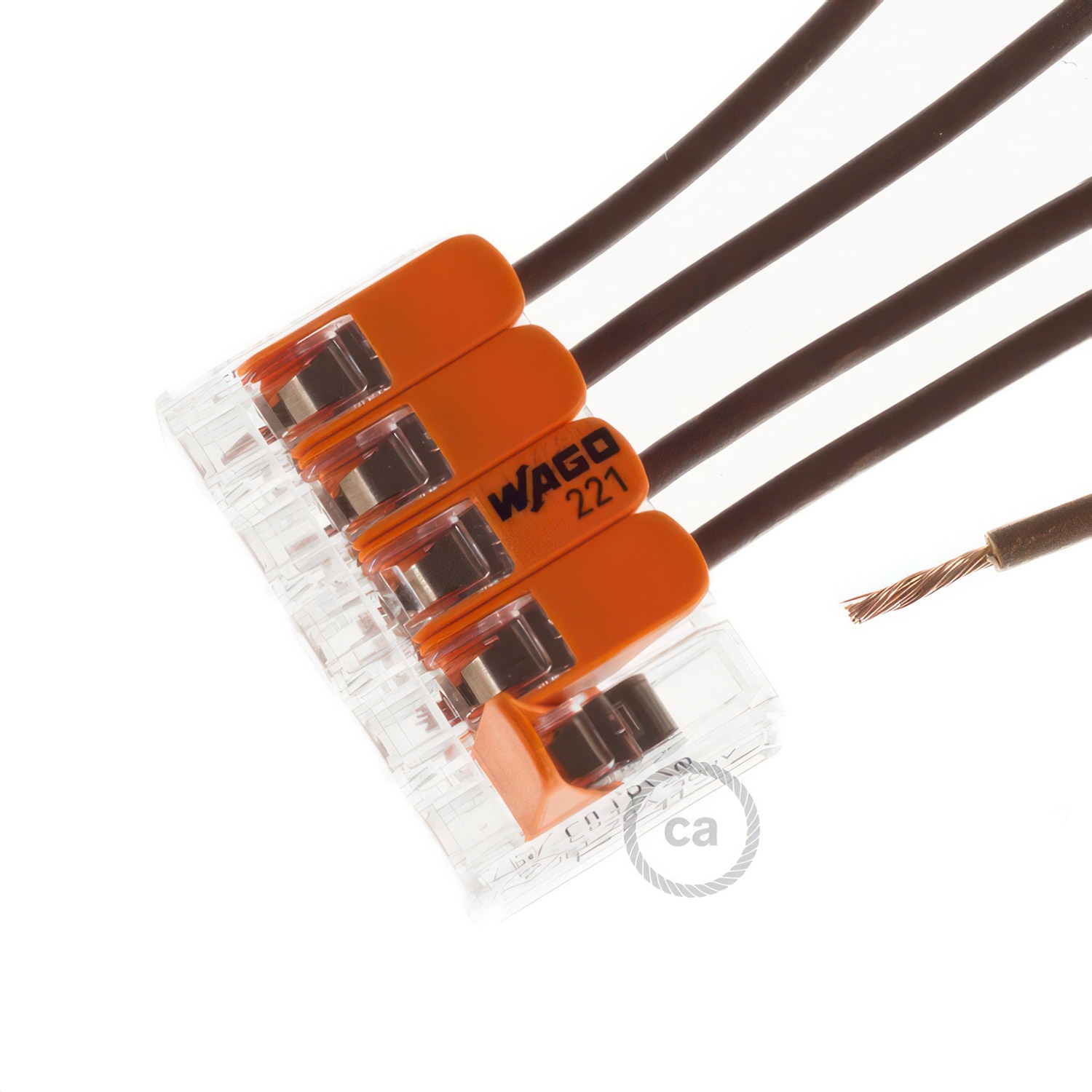

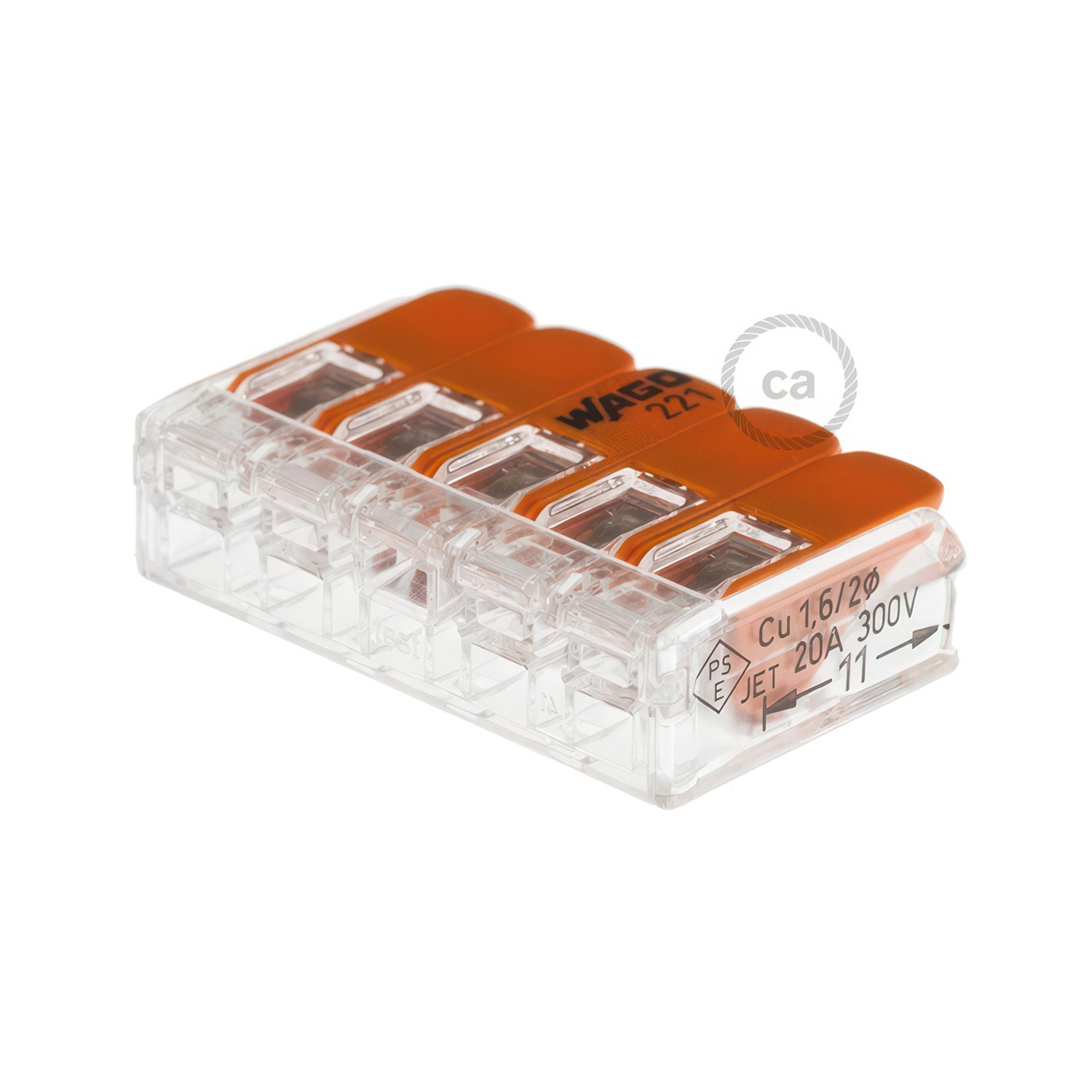

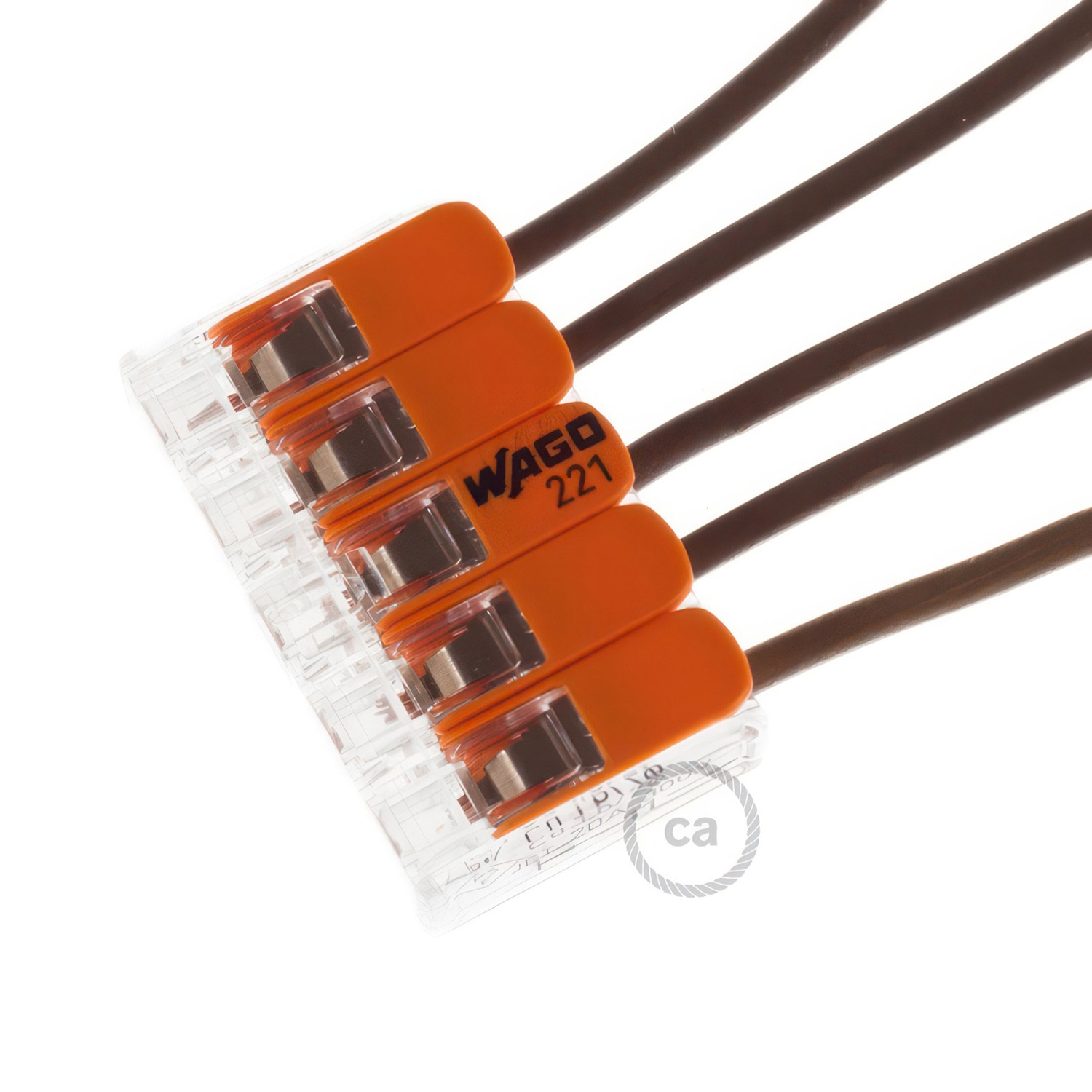

5 poles Transparent Universal Splicing Connectors
Nominal section: 2 x 0.2-2.5 mm² for rigid or flexible cables.
Nominal tension: 450 V
Nominal amperage: 24 A
Stripping lenght: 9mm(+1mm)
Maximum temperature admitted in the environment according to EN 60998 norm: 85° C
